| 产品参数 | |
|---|---|
| 产品价格 | 电议 |
| 发货期限 | 电议 |
| 供货总量 | 电议 |
| 运费说明 | 电议 |
| 规格型号 | YXRG-15 (200) |
| 流量 | 2~85立方/小时 |
| 功率 | 1.5~35kw |
| 压力 | 1Mpa~2Mpa |
| 重量 | 60~2000kg |
| 水平输送能力 | 100m |
| 垂直输送 | 3~15m |
| 软管泵吸程 | 8m |
| 软管尺寸 | 按规格定制 |
| 设备类型 | 小型软管泵 |
| 设备用途 | 工业软管泵、输送软管泵 |
| 工作原理 | 滚轴挤压式循环往复 |
| 参考价格 | 5000~85000 |
| 耐腐蚀性输送性能 | 可输送 |
| 食品果酱输送性能 | 可升级为不锈钢型软管泵，食品级软管 |
| 其他行业应用 | 根据输送物质类型，定制设计加工 |
| 交货周期 | 小型软管泵现货，大型定制 |
| 付款方式 | 预付30%，剩余货到付清 |
豫信致诚机械设备(锦州市分公司)坚持以“质量求生存，诚信求发展”。不断丰富“科技为先，品质为本，追求卓越，诚信天下”的企业文化内涵，积j i参与市场竞争，靠“诚信广交朋友，靠服务增进感情，真诚为客户创造价值”，为广大客户提供更完善的服务。

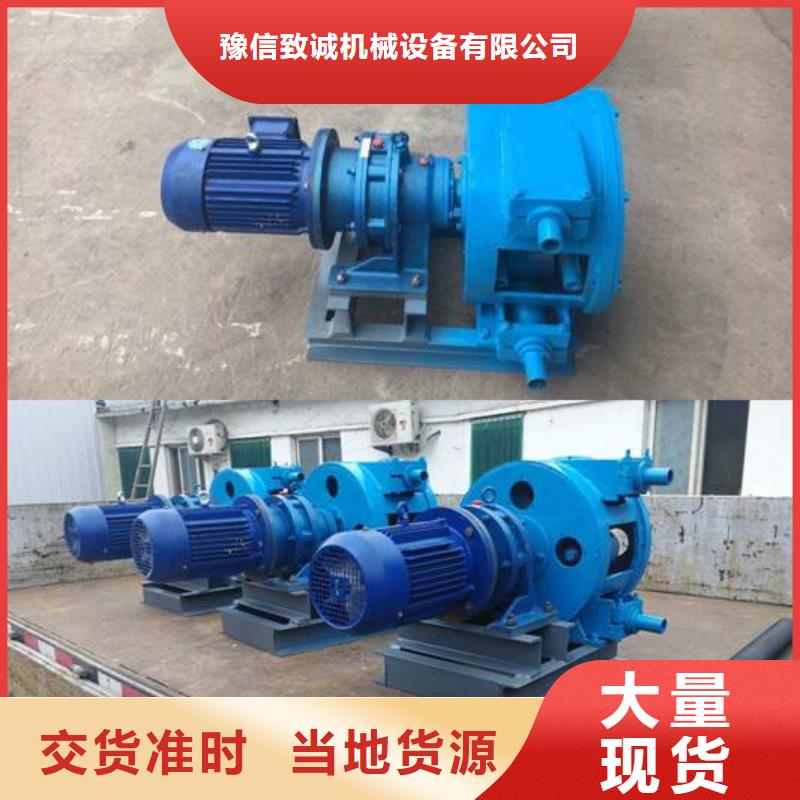

软管泵的工作原理及应用：软管在泵体内呈U形布置。当旋转体带动挤压轮旋转时，挤压软管受到挤压轮的挤压而发生弹性变形，然后吸入口形成负压吸浆。通过挤压轮的推动，浆液从出料口排出，形成浆液的压力输送。工业软管泵主要应用于建筑、地下工程、矿山、食品、造纸、陶瓷等领域的粘性浆液远距离输送、计量泵送、压力灌浆、喷射等。
Working principle and application of hose pump: The hose is arranged in a U-shape in the pump body. When the rotating body drives the extrusion wheel to rotate, the extrusion hose is elastically deformed by the extrusion wheel, and then the suction port forms a negative pressure suction slurry. By the push of the squeeze wheel, the slurry is discharged from the discharge port, forming a pressure transfer of the slurry. Industrial hose pumps are mainly used for the long-distance transportation of viscous slurry in the fields of construction, underground engineering, mining, food, papermaking, ceramics, metering pumping, pressure grouting, spraying, etc.
多用途移动泵站的主要用途：
多用途移动泵站基于泵设计开发，大流量软管泵是市政给排水中常用的一种泵型，拥有大量的潜在用户，其产品主要用于污水、初沉污泥、浓缩污泥等的抽排输送。由于转子泵具备自吸能力强、耐干转、流量范围大、耐磨损的特点受到国内设计单位和使用单位的青睐。
The main purpose of the multi-purpose mobile pumping station:
The multi-purpose mobile pumping station is based on the design and development of a pump. The large-flow hose pump is a type of pump commonly used in municipal water supply and drainage. It has a large number of potential users. Extraction delivery. Rotor pumps are favored by domestic design units and users due to their strong self-priming ability, resistance to dry running, large flow range and wear resistance.
